Diyarbakır

Diyarbakır is situated around a high plateau by the banks of the Tigris river on which stands the historic Diyarbakır Fortress, it is the administrative capital of the Diyarbakır Province of south-eastern Turkey.

top

Diyarbakır Melek Ahmet

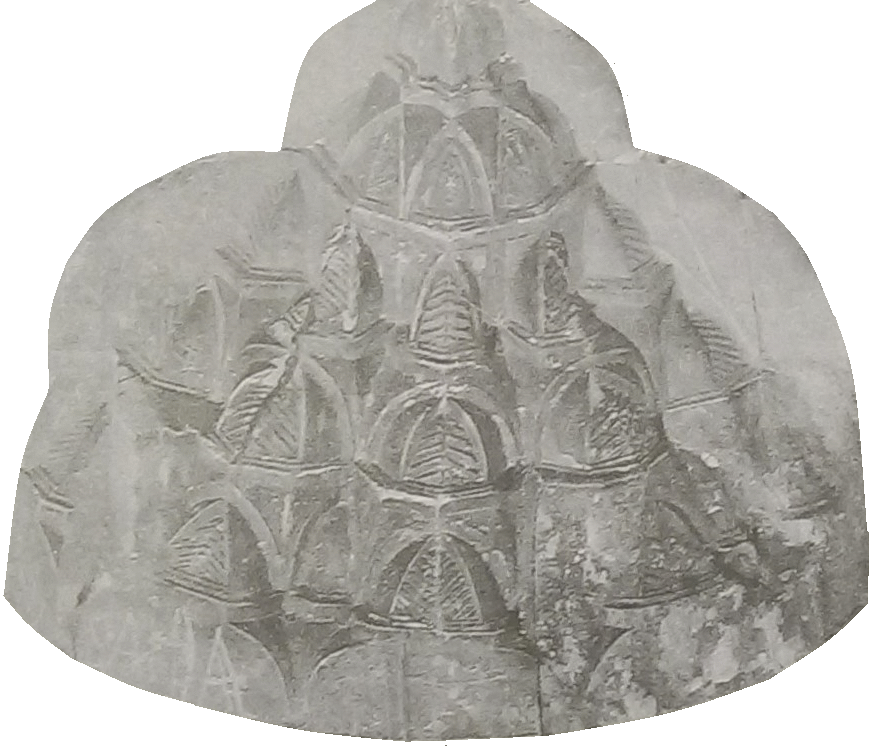

Tuncer described the niches in the east and the west wing of the entrance portal of Diyarbakır Melek Ahmet Pasa Cami. Here, I discovered new pre-defined units. The muqarnas in the niche of Melek Ahmet Pasa has different rhombuses and large bipeds. The green rhombuses have angles of 67,5° instead of 45°, the orange large bipeds have an angle of 67,5° instead of 90°.

Check the animation to find out the composition of this muqarnas.
STL animation

Diyarbakır	Muqarnas

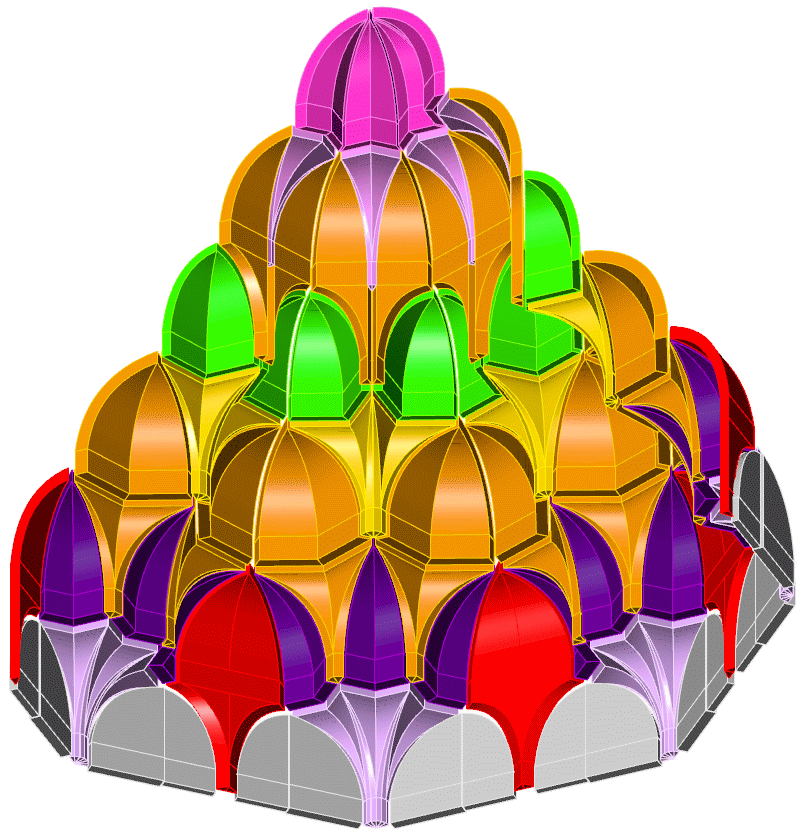

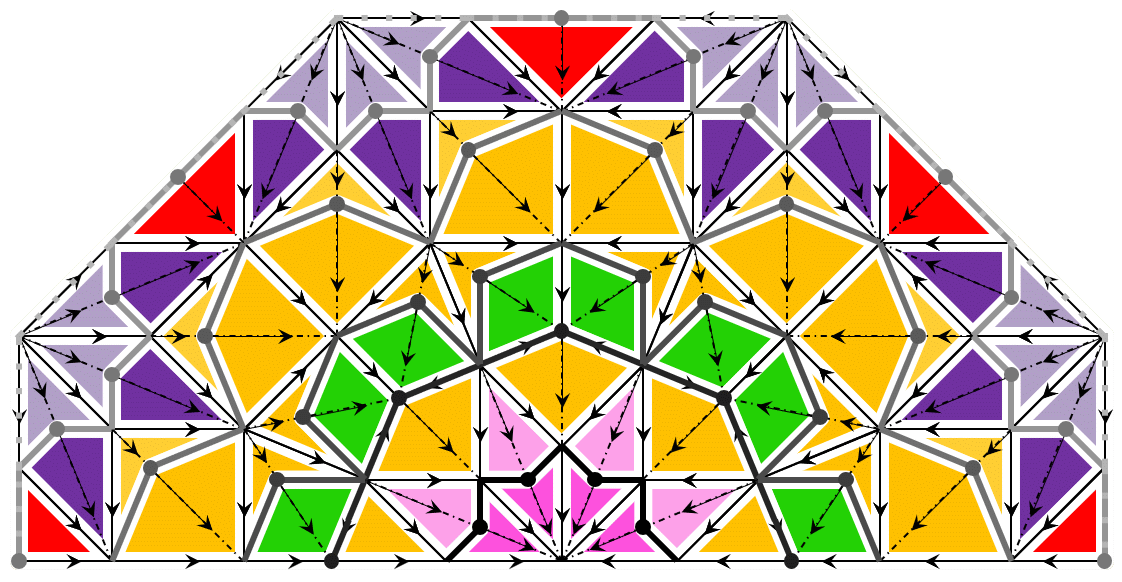

2D	3D

Coding
M M M M D N D N D N D N D Bc Bc Bc Bc Bc Bc Bc Bc D Jc Jc D D Jc Jc D D Jc Jc D D Jc Jc D E C J C J C E C J C J C E C J C J C E C J C J C E I I I I I I I I I I I I
STL Animation

Instagram

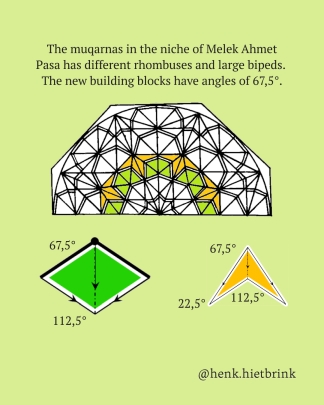

One of my Instagram posts deals with the Diyarbakır Melek Ahmet mosque.

Instagram: Diyarbakır Melek Ahmet
